    Stainless Steel Rotary Pharmaceutical Tablet Press Compression Machine Automatic

    Ask Lasest Price
    Model Number : ZP60-23
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T, D/P, Western Union
    Delivery Time : 30DAYS
    • Product Details
    • Company Profile

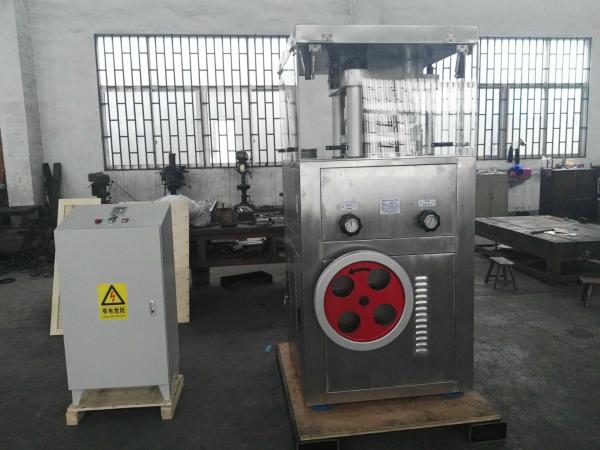

    Stainless Steel Rotary Pharmaceutical Tablet Press Compression Machine Automatic

    Stainless Steel Rotary Tablet Press Rotary Automatic Tablet Press Pharmaceutical Tablet Press Compression Machine


    Feature
    1. Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP requirements.
    2. High speed with large quantity punches, double press rollers, suitable for mass production.
    3. Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the filling precision.
    4. Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
    5. Automatic oil&grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine.
    6. Tooling track adopt double-side lifting structure, the punches are balanced stress and wear resistance.
    7. High performance electrical control system, ensure each program processing precisely.
    8. Special oil proof, dust proof and noise proof design


    ModelZP60-23ZP60-17
    Dies23 sets17 sets
    Max pressure600KN
    Max diameter of tablet36mm60mm
    Max depth of fill40mm40mm
    Max thickness of tablet20mm2mm
    Turntable speed1-10r/min1-10r/min
    Max Production capacitySingle color tablet: 27600 pcs/h
    Two color tablet: 13800 pcs/h
    Single color tablet: 20400 pcs/h
    Two color tablet: 10200 pcs/h
    Motor22 kw
    Machine size1550X1050X2350mm
    Machine weightAbout 4000kg

    Machine Characters:

    1. ZP60-17 has higher pressure(600Kn), with 17pcs of mould, max diameter of tablet it can press 60mm, max thickness is 20mm. This thickness max 20mm is bigger, no rotary machines in china mainland can reach this thickness. This is our machine technology which fills the gaps in china rotary machines.

    2. Machine turntable is made of one whole piece iron cast, not consisted of several separate metals. We highlight this point, because some suppliers have used several separate metals to make turntable, in order to reduce cost, which bad for machine life and safety, it will be cracked in fast rotation, dangerous. Also our turntables are wear resistant.

    3. It only can press single color tablet(such as salt tablet), but also can press double color tablet (washing detergent tablets).

    4.Machine is in fully closed traditional structure. Adopt transparent windows, tableting state can be observed clearly. The windows can be opened, cleaning and maintenance is easy.

    5. Machine design is reasonable. Operation, dismantling and maintenance are convenient. No complex PLC/SENSOR.

    6. Machine speed is adjustable, production capacity in big-size tablet is larger, suitable for scale production.

    7.The machine can stop automatic when over pressure.

    All the drive devices are located inside the machine so keep the machine clean.
